Polar BVP - Plotting

Visualizes convergence study and solutions for the polar boundary value problem using spectral collocation.

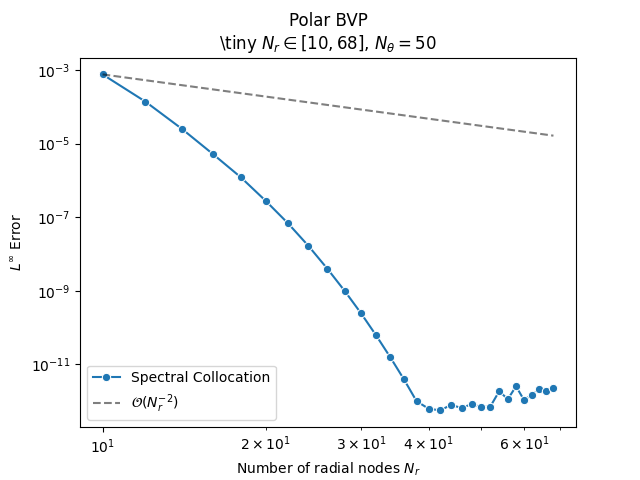

Convergence study

Analyze spectral convergence for the polar BVP.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

from spectral.utils.plotting import get_repo_root

repo_root = get_repo_root()
data_dir = repo_root / "data/A2/ex_b"
save_dir = repo_root / "figures/A2/ex_b"
save_dir.mkdir(parents=True, exist_ok=True)

convergence_df = pd.read_parquet(data_dir / "convergence_r.parquet")
print(f"Loaded convergence data: {convergence_df.shape}")

fig, ax = plt.subplots()
sns.lineplot(
    data=convergence_df,
    x="Nr",
    y="Linf_err",
    marker="o",
    ax=ax,
    label="Spectral Collocation",
)

# Add reference line showing convergence rate
Nr_vals = convergence_df["Nr"].values
err_vals = convergence_df["Linf_err"].values

# Add reference line
slope = -2
Nr_ref = np.array([Nr_vals[0], Nr_vals[-1]])
err_ref = err_vals[0] * (Nr_ref / Nr_vals[0]) ** slope

ax.plot(
    Nr_ref, err_ref, "k--", alpha=0.5, linewidth=1.5, label=r"$\mathcal{O}(N_r^{-2})$"
)

ax.set(
    xscale="log",
    yscale="log",
    xlabel=r"Number of radial nodes $N_r$",
    ylabel=r"$L^\infty$ Error",
)
ax.legend()

# Add title with parameters
Nr_min = convergence_df["Nr"].min()
Nr_max = convergence_df["Nr"].max()
ax.set_title(
    "Polar BVP" + "\n" + rf"\tiny $N_r \in [{Nr_min}, {Nr_max}] $, $N_{{\theta}} = 50$",
)

fig.savefig(save_dir / "convergence_r.pdf", bbox_inches="tight")
print(f"Saved: {save_dir}/convergence_r.pdf")

Loaded convergence data: (30, 2)
Saved: /home/docs/checkouts/readthedocs.org/user_builds/02689-advanced-num-alg/checkouts/latest/figures/A2/ex_b/convergence_r.pdf

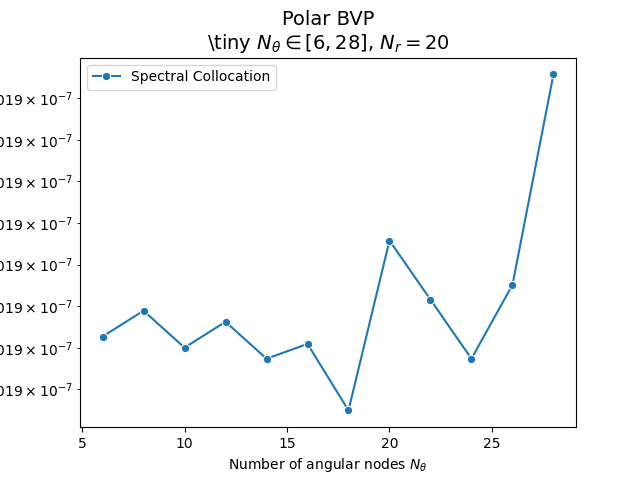

convergence_df = pd.read_parquet(data_dir / "convergence_theta.parquet")
print(f"Loaded convergence data: {convergence_df.shape}")

fig, ax = plt.subplots()
sns.lineplot(
    data=convergence_df,
    x="Ntheta",
    y="Linf_err",
    marker="o",
    ax=ax,
    label="Spectral Collocation",
)

# Add reference line showing convergence rate
Ntheta_vals = convergence_df["Ntheta"].values
err_vals = convergence_df["Linf_err"].values

# Add reference line
# slope = -2
# Ntheta_ref = np.array([Ntheta_vals[0], Ntheta_vals[-1]])
# err_ref = err_vals[0] * (Ntheta_ref / Ntheta_vals[0]) ** slope

# ax.plot(
#     Ntheta_ref,
#     err_ref,
#     "k--",
#     alpha=0.5,
#     linewidth=1.5,
#     label=r"$\mathcal{O}(N_{\theta}^{-2})$",
# )

ax.set(
    # xscale="log",
    yscale="log",
    xlabel=r"Number of angular nodes $N_{\theta}$",
    ylabel=r"$L^\infty$ Error",
)

# Add title with parameters
Ntheta_min = convergence_df["Ntheta"].min()
Ntheta_max = convergence_df["Ntheta"].max()
ax.set_title(
    "Polar BVP"
    + "\n"
    + rf"\tiny $N_{{\theta}} \in [{Ntheta_min}, {Ntheta_max}]$, $N_r = 20$",
    fontsize=14,
)

fig.savefig(save_dir / "convergence_theta.pdf", bbox_inches="tight")
print(f"Saved: {save_dir}/convergence_theta.pdf")

Loaded convergence data: (12, 2)
Saved: /home/docs/checkouts/readthedocs.org/user_builds/02689-advanced-num-alg/checkouts/latest/figures/A2/ex_b/convergence_theta.pdf

Load and prepare solution

Load the 2D polar solution data and prepare for visualization.

solution_df = pd.read_parquet(data_dir / "solution.parquet")
print(f"Loaded solution data: {solution_df.shape}")

# Get metadata
r1 = solution_df["r1"].iloc[0]
r2 = solution_df["r2"].iloc[0]
Nr = solution_df["Nr"].iloc[0]

# Get unique r and phi values to determine grid shape
r_unique = np.sort(solution_df["r"].unique())
phi_unique = np.sort(solution_df["phi"].unique())
n_phi = len(phi_unique)
n_r = len(r_unique)

print("\nGrid info:")
print(f"  Radial points: {n_r}")
print(f"  Angular points: {n_phi}")
print(f"  Total grid points: {len(solution_df)}")

# Wrap theta for continuous contours
phi_min = phi_unique.min()
wrap_df = solution_df[np.isclose(solution_df["phi"], phi_min)].copy()
wrap_df["phi"] = 2 * np.pi
grid_df = pd.concat([solution_df, wrap_df], ignore_index=True)

Theta_ext = grid_df.pivot(index="phi", columns="r", values="phi").values
Rs_ext = grid_df.pivot(index="phi", columns="r", values="r").values
Phi_hat_ext = grid_df.pivot(index="phi", columns="r", values="u").values
Phi_ext = grid_df.pivot(index="phi", columns="r", values="u_exact").values

Loaded solution data: (400, 10)

Grid info:
  Radial points: 20
  Angular points: 20
  Total grid points: 400

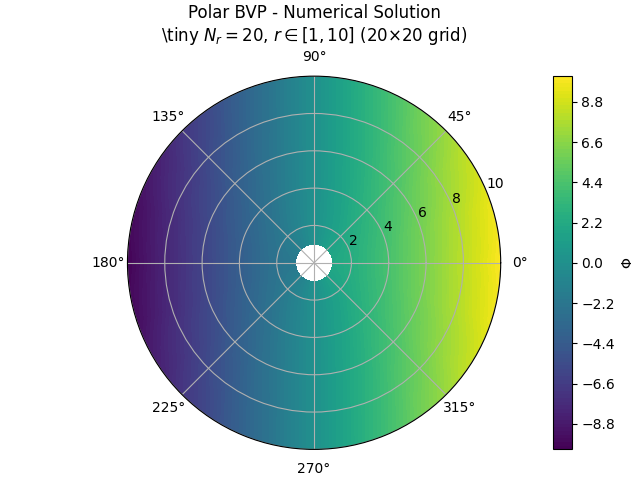

Visualize numerical solution

Plot the solution on the polar domain.

fig, ax = plt.subplots(1, 1, subplot_kw={"projection": "polar"}, layout="constrained")
con = ax.contourf(Theta_ext, Rs_ext, Phi_hat_ext, 100)
cbar = fig.colorbar(con, ax=ax)
cbar.set_label(r"$\Phi$")
ax.set_ylim(0, r2)
ax.set_title(
    "Polar BVP - Numerical Solution"
    + "\n"
    + rf"\tiny $N_r = {Nr}$, $r \in [{r1}, {r2}]$ ({n_r}×{n_phi} grid)",
)

fig.savefig(save_dir / "solution.pdf", bbox_inches="tight")
print(f"Saved: {save_dir}/solution.pdf")

Saved: /home/docs/checkouts/readthedocs.org/user_builds/02689-advanced-num-alg/checkouts/latest/figures/A2/ex_b/solution.pdf

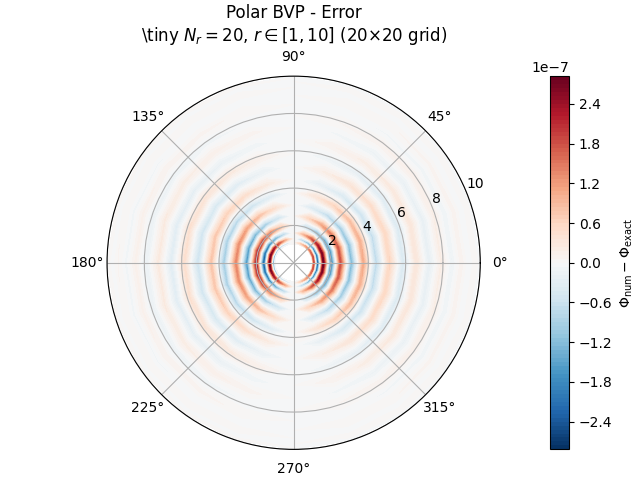

Visualize error

Show the difference between numerical and exact solutions.

fig, ax = plt.subplots(1, 1, subplot_kw={"projection": "polar"}, layout="constrained")
error = Phi_hat_ext - Phi_ext
con = ax.contourf(Theta_ext, Rs_ext, error, 100, cmap="RdBu_r")
cbar = fig.colorbar(con, ax=ax)
cbar.set_label(r"$\Phi_{\rm num} - \Phi_{\rm exact}$")
ax.set_ylim(0, r2)
ax.set_title(
    "Polar BVP - Error"
    + "\n"
    + rf"\tiny $N_r = {Nr}$, $r \in [{r1}, {r2}]$ ({n_r}×{n_phi} grid)",
)

fig.savefig(save_dir / "error.pdf", bbox_inches="tight")
print(f"Saved: {save_dir}/error.pdf")

print(f"\nAll plots saved to {save_dir}")

Saved: /home/docs/checkouts/readthedocs.org/user_builds/02689-advanced-num-alg/checkouts/latest/figures/A2/ex_b/error.pdf

All plots saved to /home/docs/checkouts/readthedocs.org/user_builds/02689-advanced-num-alg/checkouts/latest/figures/A2/ex_b
